Cotton conveyor belt

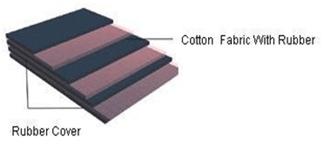

Cotton conveyor belt is woven by cotton fibers both in warp and in weft.
Cotton conveyor belt has the characteristics with low extensibility, minor deformation in high temperature and good impact resistance. It is suitable for short and medium distance and medium load transportation.
| Specification of Multi-ply Cotton Conveyor Belt | ||||||
|---|---|---|---|---|---|---|
| Carcass | Fabric structre | Type | No. of Plies | Max.one piece fabric width(mm) | Belt Width(mm) | |
| Warp | Weft | |||||
| NN | Cotton | Cotton | CC-56 | 1-10 | 2400 | 300-2400 |
| TC | Polyester | Cotton | TC-70 | 1-10 | 2400 | 300-2400 |
