Heat Resistant Conveyor Belts

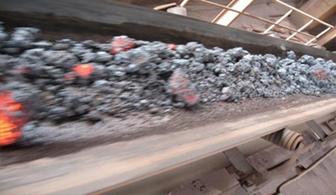

Heat resistant conveyor belt with the EP fabric of high modulus, low shrink and high breaking tensile strength. Heat resistant belt is premium quality SBR rubber compound with very good abrasion resistance and heat resistance to handle hot materials up to 200℃.
This type belt has high adhesion, less elongation as well as good wearability under normal conditions and against hot materials
| Cover Types | Standard & Grade | Minimum Tensile Strength(Mpa) | Minimum Elongation at break(%) | Maximum Abrassion(mm³) | Application Characteristics |
|---|---|---|---|---|---|
| Heat Resistant | DIN-T IS-HR(T1) | 15 | 350 | 150 | Suitable for carrying hot loads continuously at temperature up to 120℃ |
| DIN-T IS-HR(T2) | 15 | 350 | 150 | Suitable for carrying hot loads continuously at temperature up to 150℃ | |
| DIN-T (T3) EPDM rubber based | 15 | 300 | 200 | Suitable for carrying hot loads continuously at temperature up to 180℃ |
Areas of Application:
Cement works, iron and steel industry, chemical industries- Fertilisers, foundries, lime kilns, mining industries, salt works, public works, Glassworks and etc.
